Water-to-Water
Plate Heat Exchangers

Water-to-Water Heat Exchangers
BTUs ARE BASED ON 180 DEGREE WATER TEMP ENTERING UNIT

All units are 5" x 12" Footprint

Plate Exchangers 10" x 20" Footprint Available.
Call for Pricing

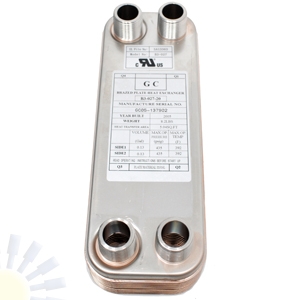

PL -10 Heat Exchanger w/ 1" ports @ $102.00 40K BTU/h
PL -20 Heat Exchanger w/ 1" ports @ $146.00 80K 10 GPM
PL -20 Heat Exchanger w/ (2)1” & (2)3/4" Ports @ $146.00 80K

PL -30 Heat Exchanger w/ 1" ports @ $193.00 120K 15 GPM

PL -40 Heat Exchanger w/ 1" ports @ $227.04 160K 15 GPM

PL -50 Heat Exchanger w/ 1" ports @ $272.00 200K 20 GPM

PL -60 Heat Exchanger w/ 1-1/4" ports @ $363.00 240K 25 GPM
PL -70 Heat Exchanger w/ 1-1/4" ports @ $395.00 280K 25 GPM
PL -80 Plate Heat Exchanger 320K BTU/h 1 1/4” Ports @ $439.00

PL -90 Plate Heat Exchanger 360K BTU/h 1 1/4” Ports @ $484.00

PL -100 Heat Exchanger w/ 1-1/4" ports @ $536.00 400K 30 GPM

The PL-10 is for domestic hot water heaters
The PL-20 is for larger domestic hot water heaters

Hot Water Kit for City Water

PL -20 W/W PLATE Heat Exchanger w/ 1" ports @ $125.00
(approximately 5" x 12" x 2" thick)

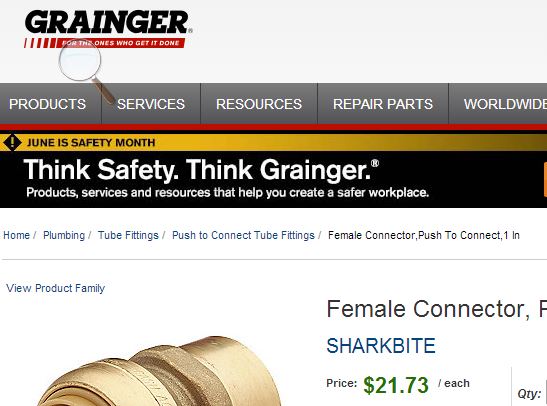

1" FPT Straight Female Adapter Push fit @ $11.49/2
1" feed line from wood stove/ to heat exchanger)
(2) 3/4" MNPT Straight Male Adapters Push fit @ $6.59/2
(2) 1" x ¾” FPT reducer coupler – SS @ $15.99/2
(to accept 3/4" copper on hot water supply)
(1) 3/4" Mixing Valve (anti-scald valve) Brass, Sweat. 120 -160 degree @ $34.99

Hot water kit as shown, $191.55 including the Anti-scald valve/
Mixing Valve

See a different Hot Water Kit (non plate type) for Well Water
