  Everyone can have a nice warm floor with radiant heat
using TheBarrier under-concrete thermal insulation!


Nice Heated Floor!






 The Barrier under concrete thermal insulation

The Barrier™
under concrete thermal insulation and vapor retarder product family is a high-performance, simple to use and labor saving product for all of your under-slab, under concrete, and radiant floor insulation projects.

The Barrier insulation

The Barrier's™ unique core material is an expanded polystyrene (EPS) with a jobsite tough, heavy-duty poly film laminated on both sides. Adding to the Barrier's™ labor saving features, NOFP added a 3" flap of film running down the sixty-four-foot length of the Barrier™ insulation with an aggressive double-faced adhesive on the opposite side of the overlap -providing a seamless vapor barrier.

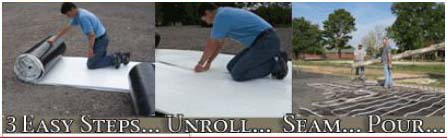

Taping seams of vapor barrier; TheBarrier

This extra material allows one roll to be neatly secured up to the next roll. All that your jobsite crew needs to do is to remove the release paper off of the double stick taped edge, compress the overlapping flap on top of the exposed adhesive, compress the edge - and you have a seamless system that will not allow the transfer of heat or cold and will retard the transfer of all forms of moisture increasing the overall efficiency of your radiant floor heating system.

Finiched job The Barrier™ under concrete thermal insulation
Finished product before wire mesh or rebar is put down

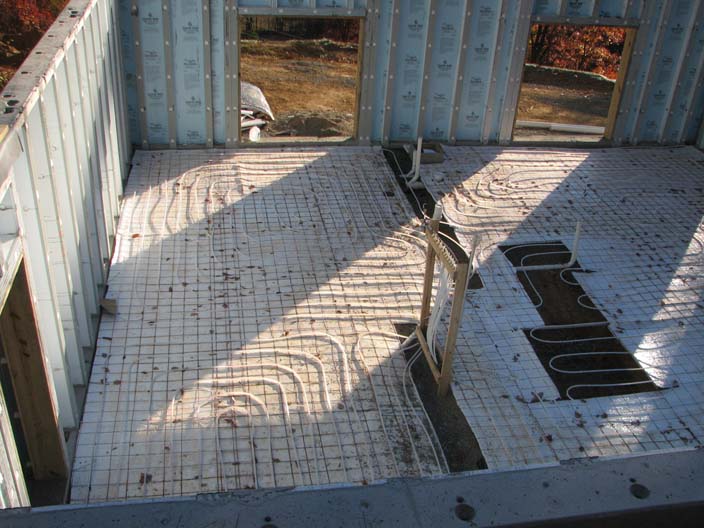

The Barrier with wire mesh and Pex pipe

TheBarrier in WHITE with wire mesh on top and the Pex Pipe tied to it with wire ties, so it doesn't float to the top and ruin your nice new floor!

In addition to these great properties, The Barrier™ / BarrierXT™ / BarrierX5™ contains recycled EPS foam taking out thousands of pounds of material out of the waste stream. By using recycled EPS foam in our proprietary recycling equipment, The Barrier™ is also a Green Building Product. So not only do you have a great product, you also have a product that is great for the environment.

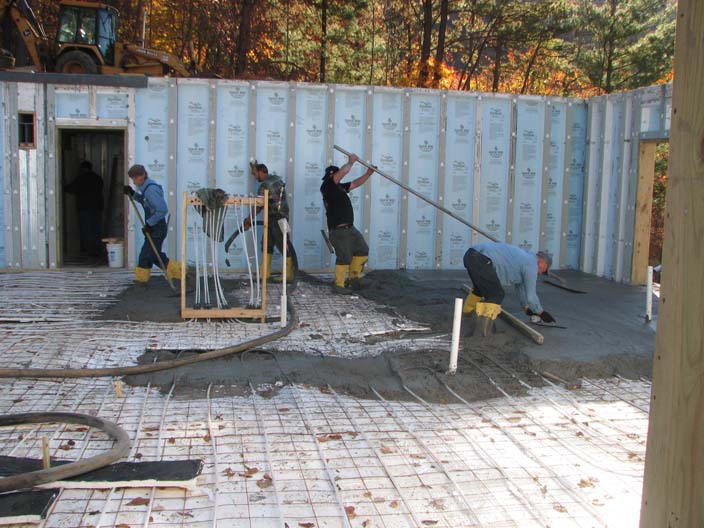

Pouring concrete on The Barrier insulation

Concrete being poured.

Note the contractors walking on TheBarrier with NO DAMAGE!

_____________________________________________

TheBarrier 4 feet' x 64 feet roll, for a total of 240 sq ft.
3/8" thick with white 3 mil vapor barrier and 3 mil product (black).
R6.4


Shipped one roll per box. Price is $150.00 + shipping.

DOUBLE the insulation; 3/4" thick for only $38 more!  $188.00/roll + shipping. R8.2

The Barrier™ Brochure Read it for great information, R values, etc!

_____________________________________________


When you use the Barrier™ for your radiant heated floor, hot water heating system, under-concrete or under-slab insulation projects, you'll know that you are using a high quality, effective product.

Heat / Cold Migration

The Barrier™ product family provides proven resistance to the transfer of heat and cold energy by its unique material makeup. By incorporating NOFP's unique recycled EPS foam as the core component, the material effectively creates a foam cooler "igloo" effect -keeping the heat on one side and the cold on the other. A great analogy is the foam coffee cup. What happens when you hold a hot coffee cup or ice-cold beverage? Hopefully nothing. You are able to hold the hot coffee cup or the ice-cold cup in your hand without sensing the thermal effects of the contents. A normal foam cup is thin - can you imagine how well The Barrier™ performs with a thickness that is 6-16" (3/8") thick? It goes without saying - it works extremely well - as laboratory testing has shown. What better product than The Barrier™ Under Concrete Insulation is there to use to use to control the heat loss in your hydronically heated floor, slab on slab, slab on grade, or retrofit project?

Click on the NOFP Logo for an informational slideshow:

Moisture Transfer

The other important property for an underground insulation material is its ability to stop all forms of moisture transfer. The Barrier™ uses a recycled EPS with laminated heavy-duty polymeric film on both sides -it stops all forms of moisture transfer, try that with rigid foam sheets.

In addition, The Barrier's™ multi-layer product make-up is an effective radon retarder. When proper sealing and gas infiltration procedures are used, The Barrier™ can mitigate the transmission of radon into your building.

The Barrier™ Brochure Read it for great information, R values, etc!

Why is The Barrier™ the fastest growing underground insulation?


The Barrier™ is the best selling under concrete insulation on the market today for a couple of simple reasons. (1) IT PERFORMS BETTER THAN ALL OTHER MATERIALS (2) It's cost-effective (3) It's easy to use. No other single material is a thermal barrier, a vapor retarder, and a moisture barrier all in one. Rigid foam insulation? NO. Rigid foam insulation material can crack and break when it's walked upon. Once this happens - you've limited the purpose of the product and created a thermal bridge to the cold below your slab.

TheBarrier thermal insulation

Can you walk on the Barrier™? YES! The Barrier™ is flexible and was formulated as an under-concrete insulation material for your radiant heated floor. See photo above

_____________________________________________

TheBarrier 4 feet' x 64 feet roll, for a total of 240 sq ft.
3/8" thick with white 3 mil vapor barrier and 3 mil product (
black).
R6.4

Shipped one roll per box. Price is $150.00 + shipping.

DOUBLE the insulation; 3/4" thick for only $38 more!  $188.00/roll + shipping. R8.2

The Barrier™ Brochure Read it for great information, R values, etc!

_____________________________________________




Call with your credit card today!

Simply mail a check or call us with your card number or check information and we'll deliver your parts to your door - right away!


Call 828-687-4074 NOW!

I am normally available 9 AM - 9 PM ET - Monday to Sat.,
except Tuesday and Friday, 9 AM - 4 PM ET.



We accept VISA, MasterCard, Discover and AMEX,
Checks, Checks by Phone as well as PayPal.

VISA  MC  Discover  AMEX






HOME - Outdoor Wood Furnace Boiler Parts

Rust protection for your boiler - furnace Rust protection for your outdoor boiler

Rust protection for your furnace

Boiler Rust Protection/Inhibitor & Corrosion Preventative Protect your warranty and expensive investment!

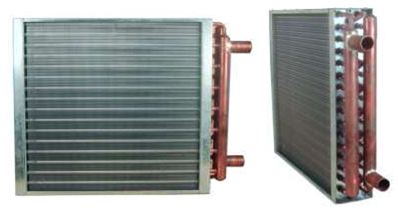

water-to-air heat excchanger Heat Exchanger Prices

< Water to Air (for ductwork)

                   and

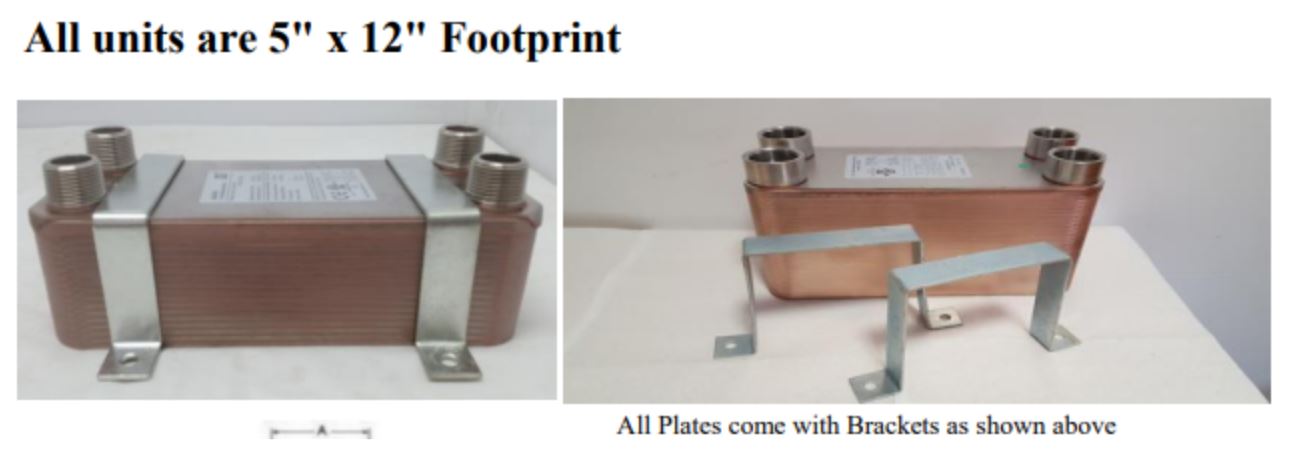

Water-to-Water - Plate style heat exchanger for radiant heat and inside boilers >

plate heat exchanger

Modine style Hanging Heat Exchangers

Modine style Hanging Heat Exchangers Side view of Modine style fan and ductwork

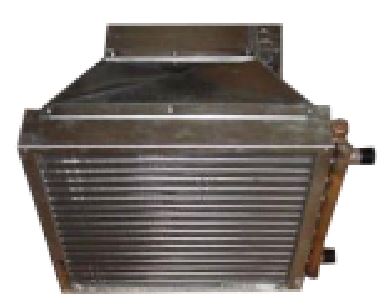

Hanging Heat Exchangers with fan

Unit Heaters - Hanging Heat Exchangers with fan

Lux 100 Plug-in Line Voltage Thermostat
Wood Fired Pool Heater Wood Fired Pool Heater
Wood Fired Spa or Hot Tub Heater Wood Fired Spa or Hot Tub Heater
Domestic Hot Water Heaters and Kits Domestic Hot Water Heaters and Kits Domestic Hot Water Heat Exchanger

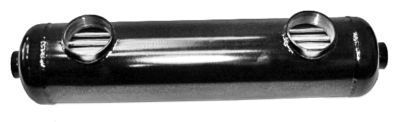

Tube and Shell Heat Exchangers Tube and Shell Heat Exchangers Tube & Shell Heat Exchanger
Pre-insulated underground Pex pipe Insulated Underground Boiler Pex Pipe Pre-insulated Pex pipe wrapped four times with insualtion
BARE outdoor wood burning furnace Pex pipe

UNinsulated:

Bare Pex Pipe Oxygen Barrier

Bare Pex Pipe NON-Barrier

For radiant heat in slabs and under wood floors and going from one heat exchanger to the next and to your insulated Pex pipe.
SharkBite style Pex Pipe fittings SharkBite style Pex Pipe fittings SharkBite style Pex Pipe Male fittings
Boiler Circulation Pump Water Circulation Pumps

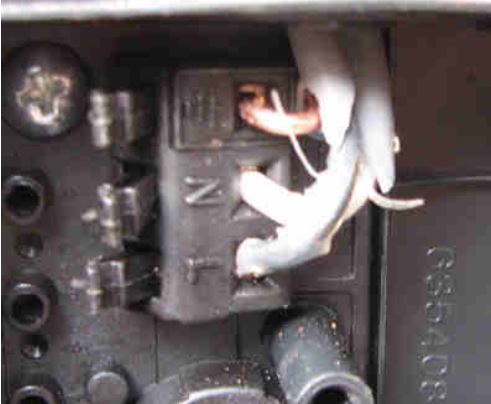

Wiring a Water Circulation Pump

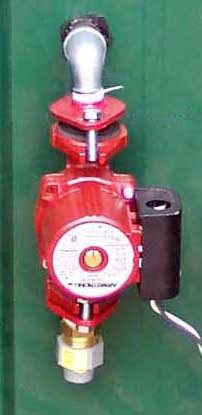

Installing a Water Circulation Pump
