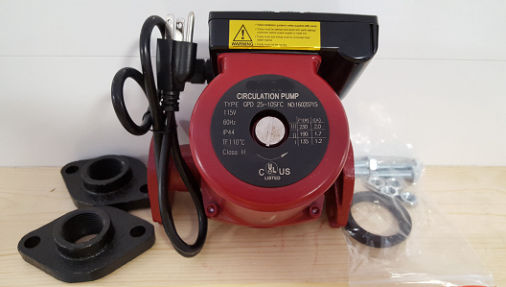

3-speed Small National Standard Circulator Pump


19 GPM to 30 GPM

Cast Iron and Stainless Steel

  1. Removable Check Valve
  2. Rotor Bleed Screw
  3. Ceramic Shaft

    5-Yr. Pro-Rated Warranty

<
Water Pump
pictures


Water Pump Description



Prices



Outdoor Furnace Circulation Pump 3-speed Small National Standard Circulator Pump

Removable Check Valve

Rotor Bleed Screw

Ceramic Shaft

19 GPM; similar to Armstrong Astro 30

Maximum Head
is 30 ft


5-Yr.
Pro-Rated Warranty

$89.00
Boiler Circulation Pump 3-speed Large National Standard Circulator Pump

Removable Check Valve

Rotor Bleed Screw

Ceramic Shaft

30 GPM - similar to Taco 11; Maximum Head is 30 ft

5-Yr.
Pro-Rated Warranty

$150.00
Outdoor Furnace Circulation Pump

The Stainless Steel Pump is only different on the inside
3-speed Small National Standard Stainless Steel Circulator Pump

Removable Check Valve

Rotor Bleed Screw

Ceramic Shaft

19 GPM; Maximum Head is 30 ft

5-Yr.
Pro-Rated Warranty

$150.00

Maximum Head means the total rise (or drop) from the pump to heat exchanger PLUS the distance one way times .08

For example, a 100 foot run would equal 8 head feet (100 x .08) PLUS any RISE in elevation and remember how deep any insulated Pex pipe is buried




 Grundfos Pumps

3 year warranty &
Free Shipping
Grundfos UPS26-99FC 3 Speed, Check Valve, 115 Volt Circulator Pump (Cast Iron Body)

1/6 HP
$275.00
Grundfos UPS26-150F 3 Speed, 115 Volt Circulator Pump (Cast Iron Body)

1/3 HP
$455.00
Grundfos ALPHA 15-55F Variable-Speed pump with cord Grundfos ALPHA 15-55 F/LC Variable Speed, Check Valve, 115 Volt Circulator Pump (Cast Iron Body) with Line Cord

1/12 HP
$175.00
Grundfos ALPHA 15-55F Variable Speed pump Grundfos ALPHA 15-55 F Variable Speed, Check Valve, 115 Volt Circulator Pump (Cast Iron Body) [Junction Box]

1/12 HP
$175.00
Grundfos Stainless Steel UPS15-55SFC 3 Speed pump Grundfos UPS15-55SFC 3 Speed, Check Valve, 115 Volt Circulator Pump
(Stainless Steel Body)

1/123 HP

NOTE: Use Bronze Pump Flanges with SS Pumps
$295.00
Grundfo Bronze 3-Speed Pump UPS26-99BFC Grundfos UPS26-99BFC 3 Speed, Check Valve, 115 Volt Circulator Pump (Bronze Body)

1/6 HP


The Grundfos UPS26-99FC is a 3-speed cast iron circulator pump with built-in flow check.

3 speeds (Low/Med/High) of the Grundfos UPS26-99FC make this model very versatile and allow to use it in a large variety of heating applications inlcuding radiant, Hydronic, radiators, fan coils, etc.

NOTE: Bronze Pump Flanges below
$475.00
Grundfos Stainless Circulation Pump UPS26-150SF Grundfos UPS26-150SF
3-Speed, Check Valve,
115 Volt Circulator Pump

(Stainless Steel Body)

1/3 HP

NOTE: Use Bronze Pump Flanges with SS Pumps
$536.00
Grundfos ALPHA 15-55SF/LC Variable Speed, Check Valve, 115 Volt Circulator Pump

(Stainless Steel Body)

1/12 HP

NOTE: Use Bronze Pump Flanges with SS Pumps
$293.00

Grundfos ALPHA 15-55SF Variable Speed, Check Valve, 115 Volt Circulator Pump (Stainless Steel Body)

1/12 HP

NOTE: Use Bronze Pump Flanges with SS Pumps
$293.00
Grundfos Accessories
Grundfos 3/4" Cast Iron Pump Flange

Grundfos 3/4" Cast Iron Pump Flange (Pair) $15.00
Grundfos 1" Cast Iron Pump Flange

Grundfos 1" Cast Iron Pump Flange (Pair) $15.00


Grundfos 1-1/2" Cast Iron Pump Flange (Pair) $15.00



Image same as above; only the diameter of the threaded hole will be different.



Grundfos 1-1/4" Cast Iron Pump Flange (Pair) $15.00
Use Bronze Flanges (below) with Stainless Steel Pumps
Grundfos 3/4" Bronze Pump Flange Grundfos 3/4" Bronze Pump Flange (Pair) $55.00
Image same as above; only the diameter of the threaded hole will be different. Grundfos 1" Bronze Pump Flange (Pair) $55.00
Image same as above; only the diameter of the threaded hole will be different. Grundfos 1-1/4" Bronze Pump Flange (Pair) $55.00

Picture of Water Pump Installed on a Shaver Outdoor Wood Furnace



Wood Boiler Installation Kit at pump

Shut-off valve, pipe thread fittings and shark bite style Pex fitting at pump, Flanges normally come with the pump or furnace, if installed.

Also comes with 2 shut-off valves (90-degree and faucet type),
pipe thread fittings and shark bite style Pex fitting
at return port.



PUMP for a Built-in Hot water Coil; diagram, wiring and Pex routing


hot water heater hookup for outdoor wood burning boiler




Pump can be installed on top when the pressure relief valve is on the side
and on the bottom with a pressure relief valve on the top.

Click on diagram above for a bigger picture
Be sure to click on lower right of diagram after downloading,
to make it bigger, if it appears too small.



Hot Water Kit and Pump Installed



hot water heater pump installed




All of these parts are available in a COMPLETE KIT
